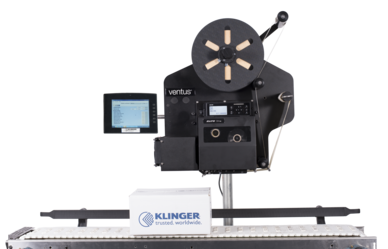

Ventus 520

Key features

  • Easy to adapt
  • Reliable
  • User-friendly
  • Two versions available: basic version and full Windows PC version
  • Settings can be easily modified
  • Can be connected to a network or WLAN
  • Robust metal frame


Ventus 520 is a blow applicator for real-time printing and applying. It is ideal for high-speed production lines where labelling must be executed extremely fast. In addition, blow application is suitable for products rugged in shape as well as such products that cannot or are not elected to be touched. The maximum labelling speed is 100 labels /minute (label size 25 x 30 mm). Ventus 520 is at its best when you print large numbers of the same label size.

Ventus 520 can apply a label on top or to the side of a product.

Label size

Standard labelling head:
Width: 25-150 mm
Length: 20-300 mm

Standard pad sizesFan: 74 x 105 mm (A7), 105 x 148 mm (A6), 148 x 210 mm (A5)
Venturi: 80 x 40 mm, 74 x 105 mm, 100 x 100 mm
Speedmax. 60 labels/minute (label size 25x20mm)
Compressed air~ 6 Bar
Printer optionsAll major printer brands available both thermal and thermal transfer
such as Sato, Zebra and Datamax O‘Neil (200, 300 and 600 dpi)
DimensionsHeight: 700 mm
Width: 500 mm
Depth: 350 mm (ohne Drucker)
WeightFrame: 26 kg
Printer: approximately 12 kg (depending on model)
