Description

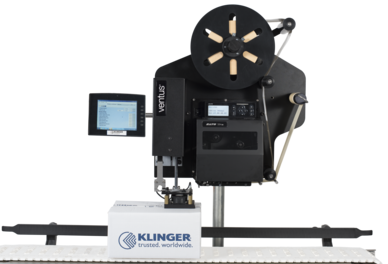

Ventus 620 is a piston applicator that applies the label with a pneumatic cylinder. This feature makes Ventus 620 ideal for applications where the label size or attachment distance varies. The application head is designed in such a way that it enables labelling also hollow applications. The label size can vary between a small-sized label (25 x 30 mm) up to A5 size pallet label. Moreover, there is an auxiliary blow as an option in the application head. It ensures that the label is accurately attached in all products – also when the surface of the product is rugged or otherwise demanding. Ventus 620 is extremely user-friendly. The application head has unique adjustment rods, and in order to change the label size, you only need to switch the position of the rod. Quick and easy!
Ventus 620 can apply a label on top or to the side of a product.
| Label size | Standard labelling head: |
| Standard pad sizes | Fan: 74 x 105 mm (A7), 105 x 148 mm (A6), 148 x 210 mm (A5) Venturi: 80 x 40 mm, 74 x 105 mm, 100 x 100 mm |
| Speed | max. 60 labels/minute (label size 25x20mm) |
| Compressed air | ~ 6 Bar |
| Printer options | All major printer brands available both thermal and thermal transfer such as Sato, Zebra and Datamax O‘Neil (200, 300 and 600 dpi) |
| Dimensions | Height: 700 mm Width: 500 mm Depth: 350 mm (without printer) |
| Weight | Frame: 26 kg Printer: approximately 12 kg (depending on model) |

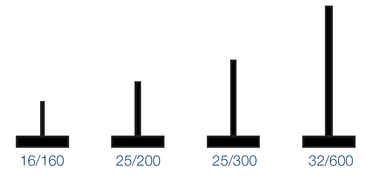

In addition to the standard 16 mm/160 mm piston there are several options to suit your particular application need.
